Plastometer

The proven sensor for consistency

The plasticity sensor Plastometer is a part of the moisture- and plasticity-control system NOVATRONIC for preparation and shaping in ceramic lines.

For measuring mould pressure and clay temperature on extruders for ceramic products.

Robust, wear-free design – adaptable for all extruder types

Versions with and without displays according to our overview.
Display for pressure and optionally for temperature on the measuring device or as a set in the control panel.


Plastometer Vektor Zeichnung

Technical Data

Measuring range for pressure:
0… 25 bar / 0… 40 bar or even special measurement ranges from 4… 100 bar
Standard output signal: standard 4 – 20 mA (also available in 0 – 10 V)

Measuring range for temperature:
Mineral-insulated resistance thermometer with Pt 100, 0… 100°C
Standard output signal: standard 4 – 20 mA

Plug:
5-pole, cable assembly, metal version
For first use, order plugs.
(other plug versions on request)

Dimension:
Height: 223 mm
∅ 40 mm
Cable length: 150 mm
Plastometer dimensions


For more information, please refer to our Operating manual.



Download Betriebsanleitung PlastometerDownload

Plastometer Abmessung

OVERVIEW OF THE VERSIONS AVAILABLE


PLASTOMETER
WITHOUT DISPLAY

Plastometer_Vektor_ohne-Anzeige


PLASTOMETER
PRESSURE

Plastometer_ohne-Anzeige


PLASTOMETER
PRESSURE / TEMPERATURE

Plastometer_ohne Anzeige_Druck/Temperatur

PLASTOMETER
WITH DISPLAY ON THE MEASURING DEVICE

Plastometer_Vektor_mit Anzeige am Messgerät


PLASTOMETER

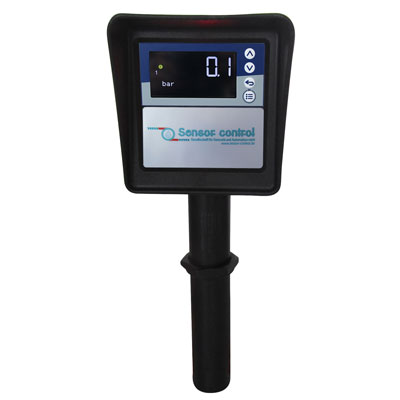

with display
PRESSURE

Plastometer mit einer Anzeige Druck


PLASTOMETER

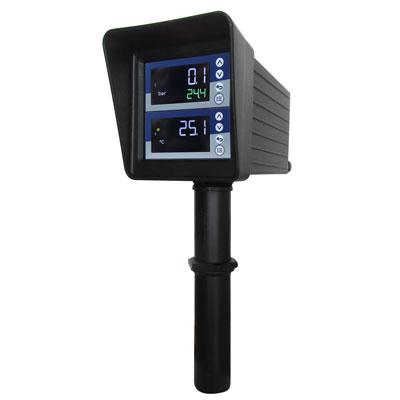

with two displays
PRESSURE / TEMPERATURE

Plastometer mit zwei Anzeigen_Druck/Temperatur


PLASTOMETER

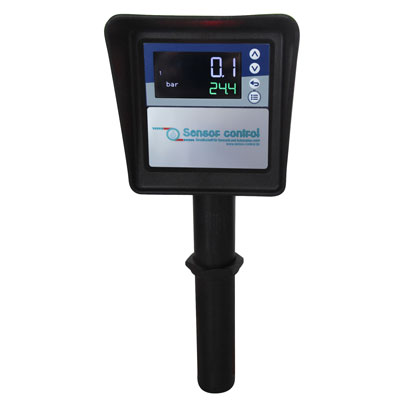

with combined display
PRESSURE / TEMPERATURE

Plastometer mit einer Kombi-Anzeige_Druck/Temperatur

PLASTOMETER
MIT EXTERNER ANZEIGE

Plastometer_Vektor_Plastometer eingebaut
Plastometer_Vektor_mit externer Anzeige


PLASTOMETER

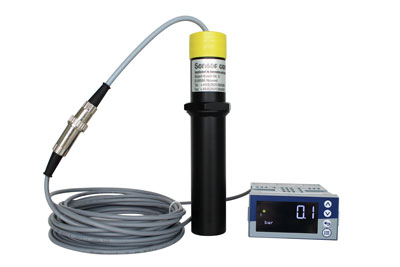

with external display
PRESSURE

Plastometer mit einer externen Anzeige für Druck


PLASTOMETER
with two external displays
PRESSURE / TEMPERATURE

Plastometer mit zwei externen Anzeigen_Druck/Temperatur

For more information, please refer to our operating instructions.



Download Betriebsanleitung PlastometerDownload

Please refer to the overview for the available versions.



Download Infoprospekt PlastometerDownload

Novatronic

The Novatronic C control unit and the corresponding components

• plasticity sensor Plastometer and
• dosing units for water and steam

have proven themselves in more than 800 installations worldwide.
